| Genset Specification | Engine Specification | Genset Appearance | |||||||
| 发电机组规格 | 柴油机规格 | 机组外形 | |||||||
| 机组型号 Genset Model | Rated Output 额定功率 kW/kVA | 频率/电压 Fre/ Volt (Hz/V) | 柴油机型号Engine Model | 功率/转速 Power/Speed (kW/RPM) | 气缸数 Cyl. | 排量 Dis. (L) | 外形尺寸 Dimension （mm） | 重量 Weight（kg） | |
| YG-30GFC | 30 | 37.5 | 50/400 | 4BTA3.9-GM47 | 47/1500 | 4 | 3.9 | 1650*850*1270 | 760 |
| YG-40GFC | 40 | 50 | 50/400 | 4BTA3.9-GM47 | 47/1500 | 4 | 3.9 | 1740*850*1270 | 800 |
| YG-50GFC | 50 | 63 | 50/400 | 6BT5.9-GM83 | 83/1500 | 6 | 5.9 | 1900*895*1300 | 1000 |
| YG-64GFC | 64 | 80 | 50/400 | 6BT5.9-GM83 | 83/1500 | 6 | 5.9 | 1900*895*1300 | 1100 |
| YG-75GFC | 75 | 93.75 | 50/400 | 6BT5.9-GM83 | 100/1500 | 6 | 5.9 | 1920*895*1300 | 1250 |
| YG-90GFC | 90 | 112.5 | 50/400 | 6BTA5.9-GM100 | 100/1500 | 6 | 5.9 | 1995*895*1300 | 1300 |
| YG-100GFC | 100 | 125 | 50/400 | 6CT8.3--GM115 | 115/1500 | 6 | 8.3 | 2110*860*1360 | 1650 |
| YG-120GFC | 120 | 150 | 50/400 | 6CTA8.3-GM155 | 155/1500 | 6 | 8.3 | 2110*860*1360 | 1700 |
| YG-150GFC | 150 | 187.5 | 50/400 | 6LTAA8.9-GM200 | 200/1500 | 6 | 8.9 | 2210*860*1400 | 1870 |
| YG-180GFC | 180 | 225 | 50/400 | 6LTAA8.9-GM200 | 200/1500 | 6 | 8.9 | 2210*860*1400 | 1890 |
| YG-200GFC | 200 | 250 | 50/400 | NTA855-DM | 240/1500 | 6 | 14.0 | 2760*995*1790 | 3100 |
| YG-200GFC | 200 | 250 | 50/400 | N855-DM | 240/1500 | 6 | 14.0 | 2760*995*1790 | 3100 |
| YG-250GFC | 250 | 313 | 50/400 | NTA855-DM | 284/1500 | 6 | 14.0 | 2760*995*1790 | 3180 |
| YG-250GFC | 250 | 313 | 50/400 | N855-DM | 284/1500 | 6 | 14.0 | 2760*995*1790 | 3180 |
| YG-280GFC | 280 | 350 | 50/400 | NTA855-DM | 317/1500 | 6 | 14.0 | 2998*995*1790 | 3250 |
| YG-280GFC | 280 | 350 | 50/400 | N855-DM | 317/1500 | 6 | 14.0 | 2998*995*1790 | 3250 |
| YG-300GFC | 300 | 375 | 50/400 | KTA19-DM | 336/1500 | 6 | 19.0 | 3170*1000*1905 | 3750 |
| YG-320GFC | 320 | 400 | 50/400 | K19-DM | 358/1500 | 6 | 19.0 | 3170*1000*1905 | 3750 |
| YG-350GFC | 350 | 438 | 50/400 | KTA19-DM | 403/1500 | 6 | 19.0 | 3170*1000*1905 | 3800 |
| YG-350GFC | 350 | 438 | 50/400 | K19-DM | 410/1500 | 6 | 19.0 | 3170*1000*1905 | 3800 |
| YG-400GFC | 400 | 500 | 50/400 | KTA19-DM | 448/1500 | 6 | 19.0 | 3170*1000*1905 | 3950 |
| YG-400GFC | 400 | 500 | 50/400 | K19-DM | 448/1500 | 6 | 19.0 | 3170*1000*1905 | 3950 |
| YG-500GFC | 500 | 625 | 50/400 | KT38-DM | 560/1500 | 12 | 38.0 | 3950*1500*2500 | 6200 |
| YG-600GFC | 600 | 750 | 50/400 | KTA38-DM | 664/1500 | 12 | 38.0 | 4050*1400*268 | 6550 |
| YG-650GFC | 650 | 813 | 50/400 | KTA38-DM | 746/1500 | 12 | 38.0 | 4050*1400*2680 | 6980 |
| YG-700GFC | 700 | 875 | 50/400 | K38-DM | 814/1500 | 12 | 38.0 | 4100*1500*2500 | 6500 |
| YG-800GFC | 800 | 1000 | 50/400 | KTA38-DM | 880/1500 | 12 | 38.0 | 4100*1500*2500 | 7000 |
| YG-800GFC | 800 | 1000 | 50/400 | K38-DM | 880/1500 | 12 | 38.0 | 4100*1500*2500 | 7000 |
| YG-1000GFC | 1000 | 1250 | 50/400 | K50-DM | 1092/1500 | 12 | 38.0 | 4250*1500*2500 | 7500 |

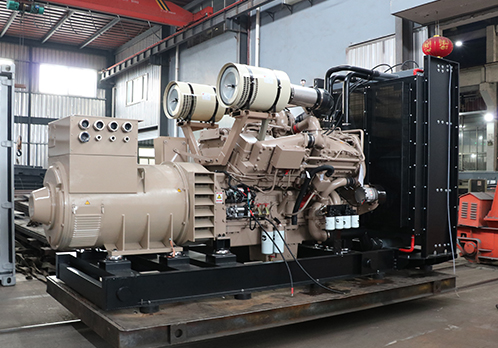

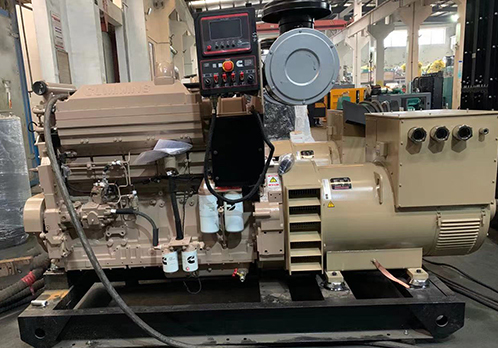

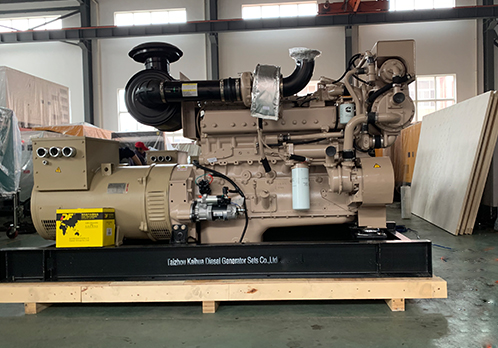

船用发电机组
Cell Phone:+86 13961031219
WeChat/WhatsApp:+86-13961031219
Emai:13961031219@139.com
WeChat/WhatsApp:+86-13961031219
Emai:13961031219@139.com
| Genset Specification | Engine Specification | Genset Appearance | |||||||
| 发电机组规格 | 柴油机规格 | 机组外形 | |||||||
机组型号 Genset Model | Rated Output 额定功率 kW/kVA | 频率/电压 Fre/ Volt (Hz/V) | 柴油机型号 Engine Model | 功率/转速 Power/Speed (kW/RPM) | 气缸数 Cyl. | 排量 Dis. (L) | 外形尺寸 Dimension （mm） | 重量 Weight（kg） | |
| YG-40GFC | 40 | 50 | 60/440 | 4BTA3.9-GM65 | 65/1800 | 4 | 3.9 | 1740*850*1270 | 800 |
| YG-50GFC | 50 | 62.5 | 60/440 | 4BTA3.9-GM65 | 65/1800 | 4 | 3.9 | 1740*850*1270 | 850 |
| YG-64GFC | 64 | 80 | 60/440 | 6BT5.9-GM100 | 100/1800 | 6 | 5.9 | 1905*895*1300 | 1100 |
| YG-75GFC | 75 | 93.75 | 60/440 | 6BT5.9-GM100 | 100/1800 | 6 | 5.9 | 1920*895*1300 | 1250 |
| YG-90GFC | 90 | 112.5 | 60/440 | 6BTA5.9-GM120 | 120/1800 | 6 | 5.9 | 1995*895*1300 | 1300 |
| YG-100GFC | 100 | 125 | 60/440 | 6BTA5.9-GM120 | 120/1800 | 6 | 5.9 | 2110*895*1360 | 1650 |
| YG-120GFC | 120 | 150 | 60/440 | 6CTA8.3-GM175 | 175/1800 | 6 | 8.3 | 2110*860*1360 | 1700 |
| YG-150GFC | 150 | 187.5 | 60/440 | 6CTA8.3-GM175 | 175/1800 | 6 | 8.3 | 2685*860*1790 | 1750 |
| YG-250GFC | 250 | 312.5 | 60/440 | NTA855-DM | 287/1800 | 6 | 14.0 | 2760*995*1790 | 3180 |
| YG-250GFC | 250 | 312.5 | 60/440 | N855-DM | 287/1800 | 6 | 14.0 | 2760*995*1790 | 3180 |
| YG-280GFC | 280 | 350 | 60/440 | NTA855-DM | 313/1800 | 6 | 14.0 | 2850*995*1790 | 3250 |
| YG-280GFC | 280 | 350 | 60/440 | N855-DM | 313/1800 | 6 | 14.0 | 2850*995*1790 | 3250 |
| YG-350GFC | 350 | 437.5 | 60/440 | KTA19-DM | 392/1800 | 6 | 19.0 | 3170*1000*1905 | 3800 |
| YG-380GFC | 380 | 475 | 60/440 | K19-DM | 425/1800 | 6 | 19.0 | 3170*1000*1905 | 3850 |
| YG-400GFC | 400 | 500 | 60/440 | KTA19-DM | 463/1800 | 6 | 19.0 | 3170*1000*1905 | 3950 |
| YG-400GFC | 400 | 500 | 60/440 | K19-DM | 485/1800 | 6 | 19.0 | 3170*1000*1905 | 3950 |
| YG-450GFC | 450 | 562.5 | 60/440 | KTA19-DM | 507/1800 | 6 | 19.0 | 3950*1500*2500 | 4000 |
| YG-600GFC | 600 | 625 | 60/440 | KTA38-DM | 679/1800 | 12 | 38.0 | 4100*1500*2500 | 6300 |
| YG-700GFC | 700 | 875 | 60/440 | KTA38-DM | 809/1800 | 12 | 38.0 | 4100*1500*2500 | 6400 |
| YG-720GFC | 720 | 900 | 60/440 | KTA38-DM | 821/1800 | 12 | 38.0 | 4100*1500*2500 | 6400 |
| YG-720GFC | 720 | 900 | 60/440 | K38-DM | 821/1800 | 12 | 38.0 | 4100*1500*2500 | 6400 |
| YG-800GFC | 800 | 1000 | 60/440 | KTA38-DM | 1007/1800 | 12 | 38.0 | 4100*1500*2500 | 7100 |
| YG-800GFC | 800 | 1000 | 60/440 | K38-DM | 970/1800 | 12 | 38.0 | 4100*1500*2500 | 7100 |
| YG-900GFC | 900 | 1125 | 60/440 | KTA38-DM | 1007/1800 | 12 | 38.0 | 4250*1500*2500 | 7500 |
| YG-1150GFC | 1150 | 1438 | 60/440 | K50-DM | 1291/1800 | 12 | 50.0 | 4250*1500*2500 | 7500 |
